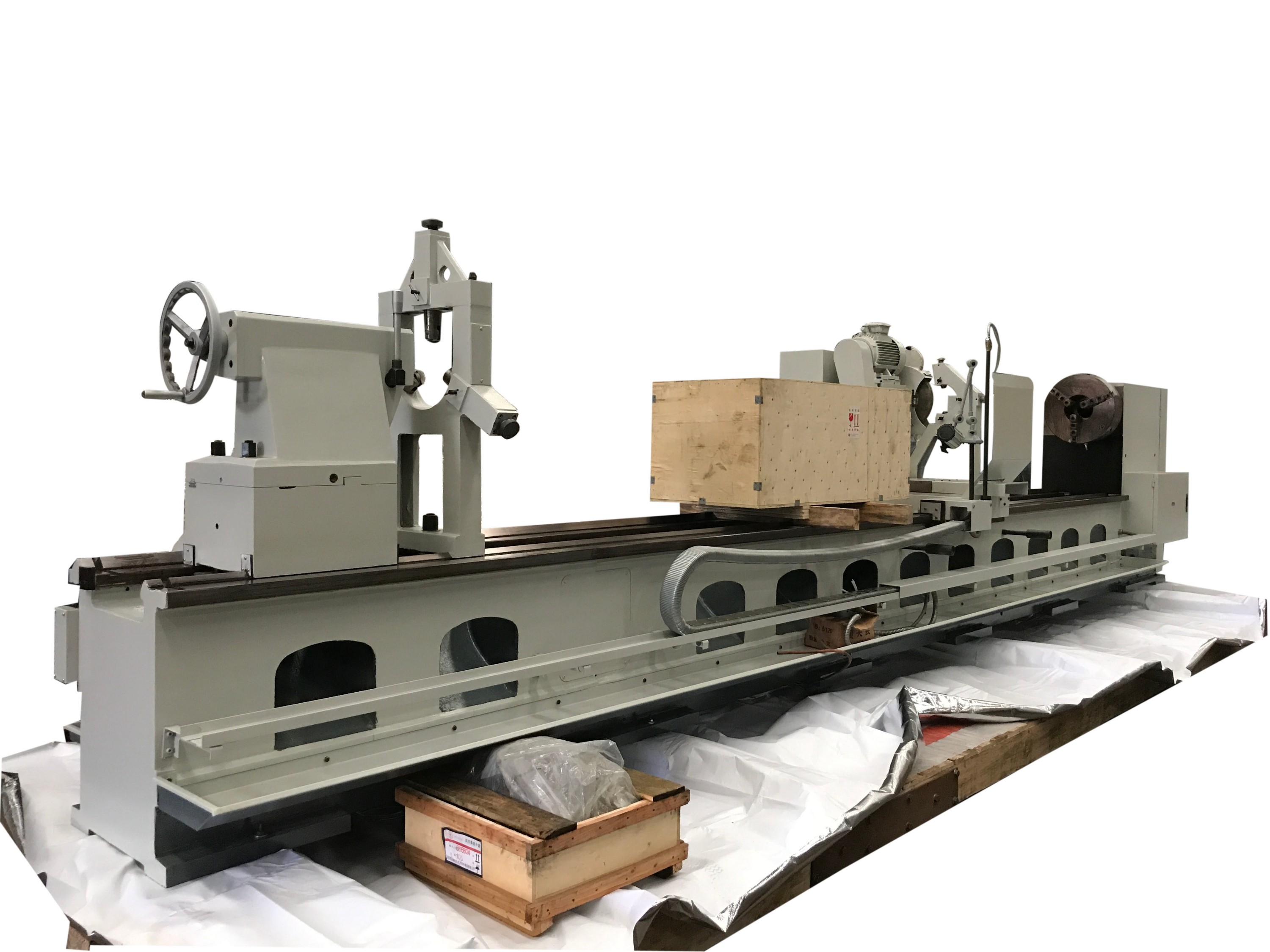

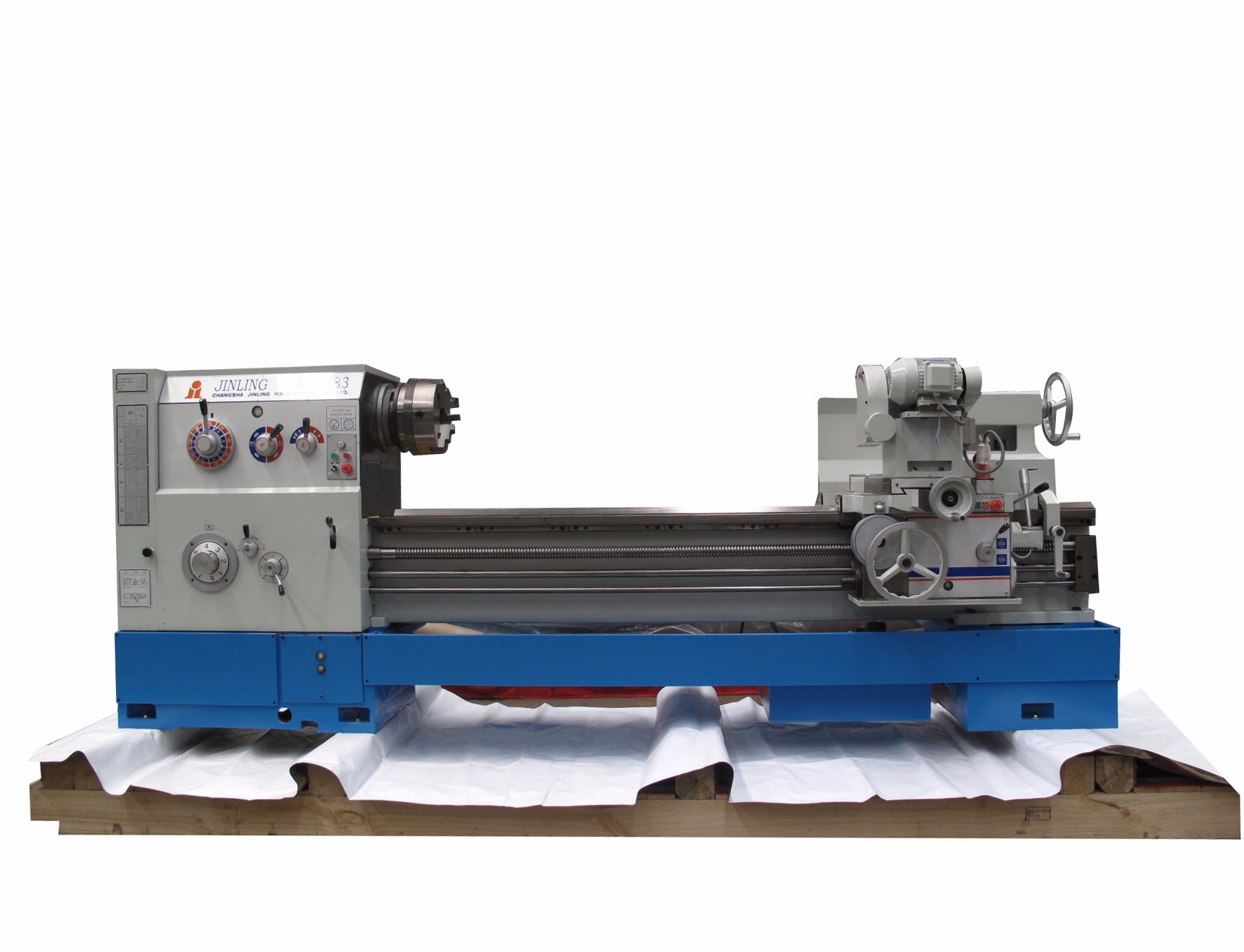

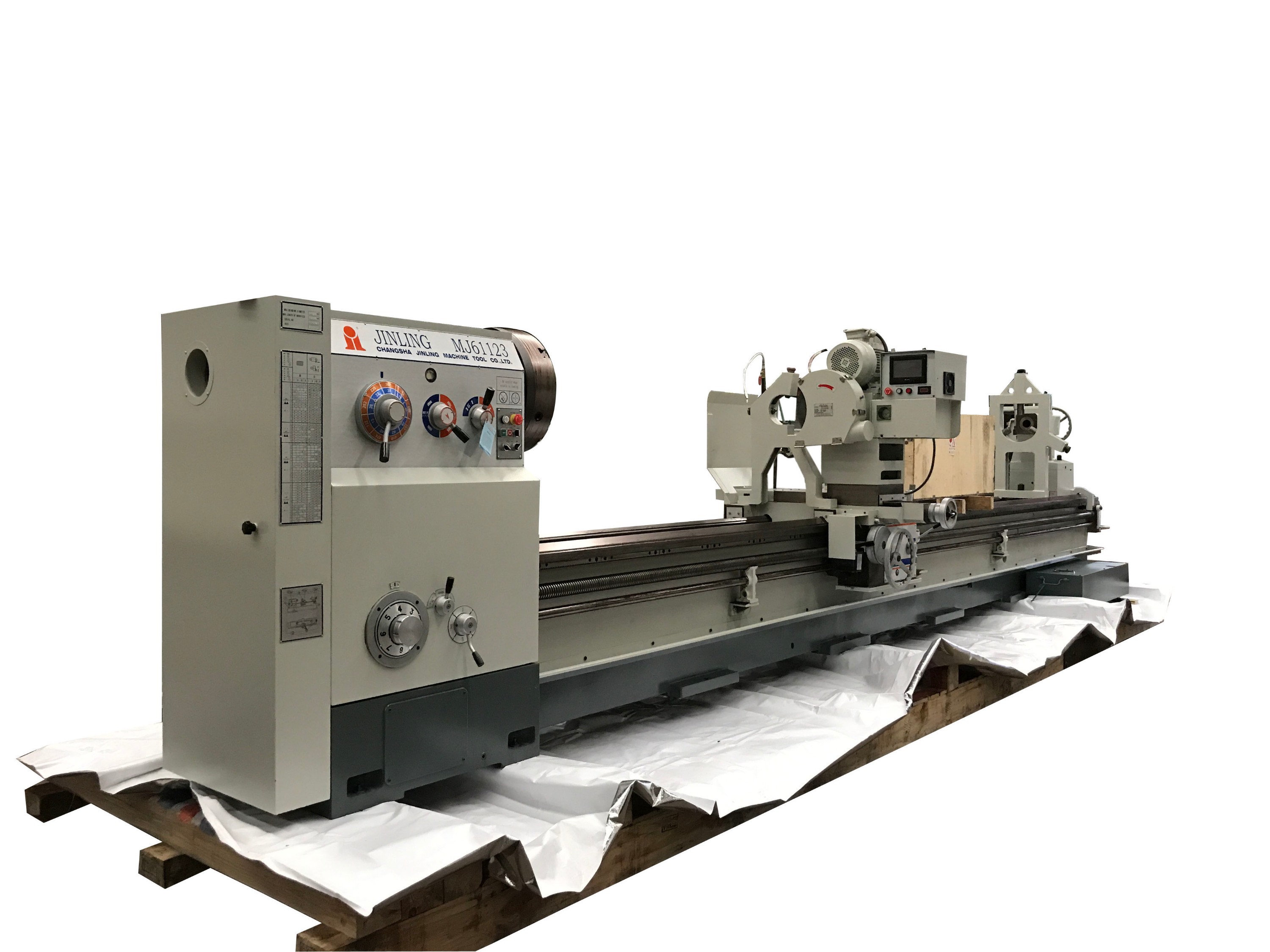

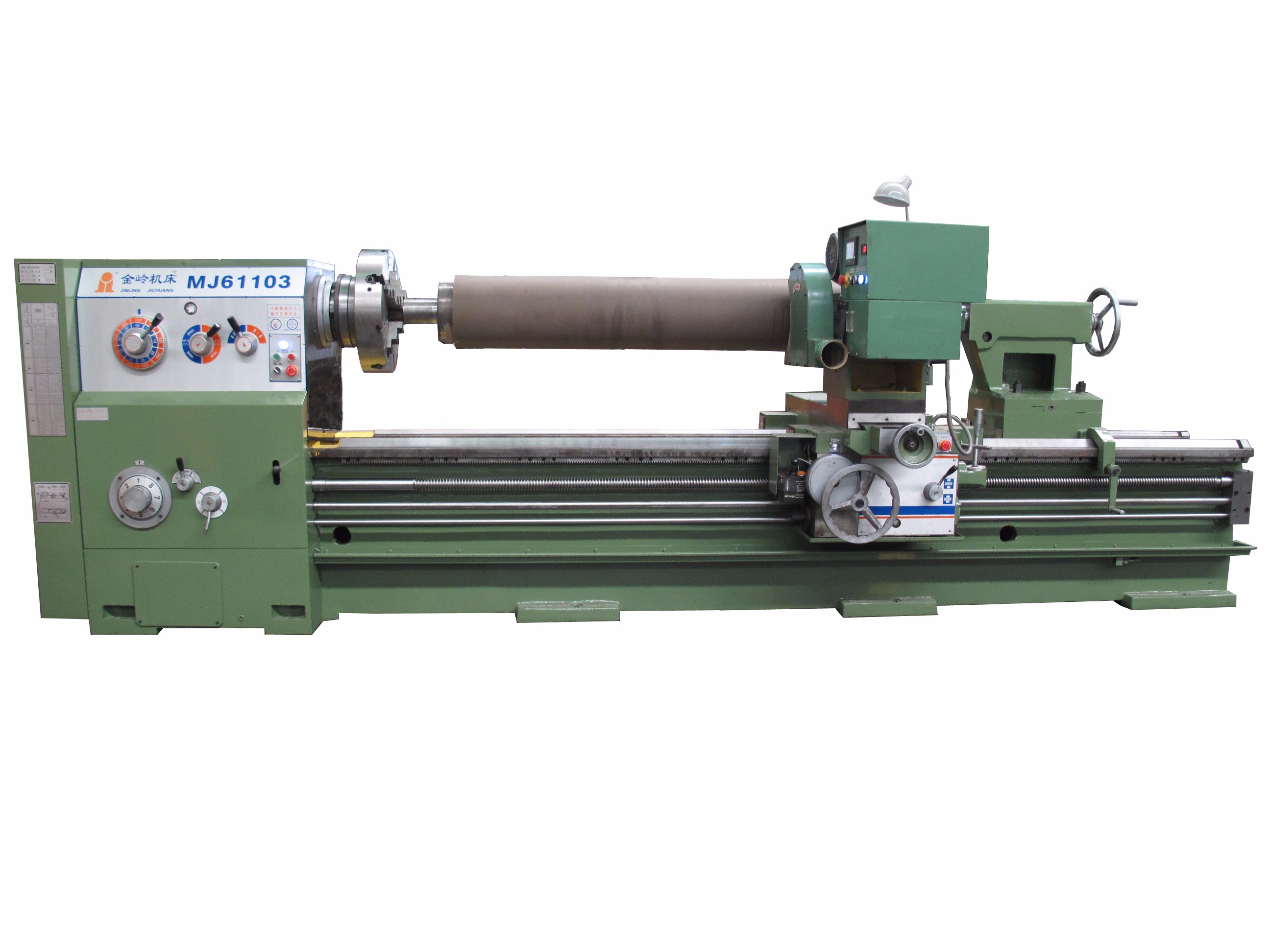

MJ series rubber roller grinding machine

The machine is designed on the base of CW61103 series horizontal lathe with solid bed, CNC crowning grinding head is equipped taking place of lathe’s tool post system for the job of grinding rubber roller as well as shaft parts. And this CNC grinding head is controlled by specialized servo system with specialized software what makes this machine work for rubber roller in the shape of cylinder, convex crown, concave crown, threads and taper-end. Rigidity,accuracy and wide range of application features this machine. The accuracy of machined parts can reach IT7 and surface roughness less than 1.6μm. Moreover, when the tool post system is equipped on, this machine works for multi-purpose acting as turning-grinding combined machine. This machine has great market in the fields of machinery,steelmaking, papermaking,printing,textile industry.

Main specification

Main specification	Unit	Model
Main specification	Unit	MJ6183	MJ61103	MJ61123	MJ61143	MJ61163	MJ61183
Max. Swing over bed	mm	830	1030	1230	1430	1630	1830
Max. Swing over saddle	mm	500	700	900	1100	1240	1440
Max. Grinding size	mm	350	500	650	800	1000	1200
Distance between centers	mm	1500、2000、3000、4500、6000
Max. Grinding size	mm	1300、1800、2800、4300、5800
Model of grinder		FYK250、FYK350、FYK500
Size of grind wheel	mm	Φ250×Φ75×32、Φ350×Φ127×40、Φ500×Φ203×63
Motor power of grinder	kw	2.2、4、7.5
Linear velocity of grinding wheel	m/s	30
Convex/concave value	mm	6、8、10
Dia. Of tailstock	mm	120
Taper of tailstock		MT6
Bed width	mm	610
Main motor power	kw	11
Main motor power	kw	11

Standard Accessories

Four jaw chuck and flange, center, center sleeve, tools, foundation bolts, level block,

Unloading device for grinding wheel, machine tool manual.

optional accessories

Thee jaw chuck and flange, tool post assembly, follower rest, steady rest, dust collector.
